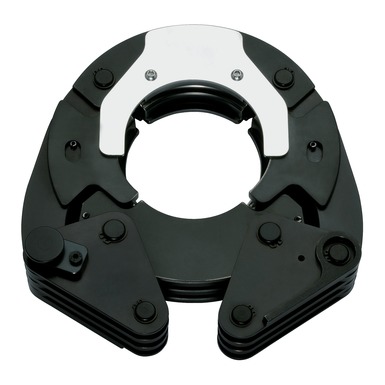

BP pressing chain HP (high pressure) 120 kN
- Synchronised crimping thanks to four-segment technology
- Reliable form fit thanks to positive segment guidance
Read More
Features
- Solid chain lock allows strong forces to be absorbed and prevents slipping from the fitting
- Firm positioning of the adapter jaw thanks to optimised design
- Simple chain changeover even when "working overhead" by separating the chain from the machine
- Crimping chains can be changed by one person
- Simultaneous constriction of the fitting and deformation of the sealing element thanks to four-segment technology
- Easy chain removal after the crimping operation thanks to polished profile surfaces
- International approvals, including for special system tests with large dimensions (PN12, 48 bar; PN16, 64 bar)
suitable for
- Stainless steel, steel: max. NW108 - 4"
- Copper, copper alloys: max. NW108 - 4"
- Composite/PEX pipe: max. NS110
Additional information
- * These values are system-related. Please contact your system provider for binding information.
Specifications
| Linear force | 120 kN kN |
| Compatible crimping jaws, crimping chains | UAP100120,UAP100L,UAP100,PK100 |
| Article description | BP pressing chain HP (high pressure) 120 kN |
| *Klauke® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models. |
Support Documents
Operator’s Manual
UAP100120CFB-Operating Instructions
(6.61 MB)
UAP100120CFM-Operating Instructions
(6.84 MB)
Ordering Information
Ordering information
| PART NO. | Description |
|---|---|
| BP761M | Pressing chain M KSP3 |
| BP889M | Pressing chain M KSP3 |
| BP108M | Pressing chain M KSP3 |
Accessories
| PART NO. | Description |
|---|---|
| UAP100120CFM | Battery-powered crimping tool with Makita battery, 120 kN |
| UAP100120CFB | Universal battery-powered hydraulic pressing tool with Bosch battery, 120 kN |
