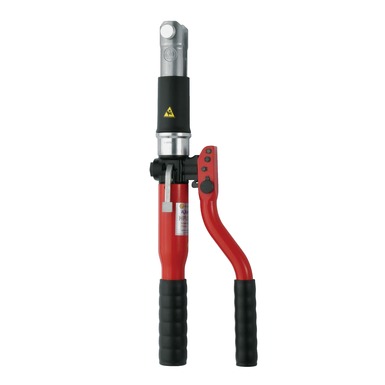

HPU32 Hydraulic mechanical pressing tool 15 kN
- Quick infeed of the plunger thanks to 2-stage hydraulics
- With manual/hydraulic force transmission, it also meets fire and explosion protection requirements
Read More
Features
- Time saving with multiple crimps due to automatic retraction
- Broad application range from NS12 to NS108 (4")
- Forced crimping cycle thanks to valve control
- Flexible and cost-effective thanks to interchangeable standard crimping jaws
- Compact design thanks to the integrated oil tank in the handle
- Effortless operations thanks to low weight
- Secure grip thanks to ergonomic handles
- Optimum pump lever position for all requirements thanks to approx. 350° rotating head
suitable for
- Stainless steel, steel: max. NS54*
- Copper, copper alloys: max. NS54/108/4
- Composite pipe: max. NS75 (110*)
- PEX pipe: max. NS75*
- * These values are system-related. Please contact your system provider for binding information.
Specifications
| Crimping force | Linear thrust of approx. 15 kN |
| Linear force | 15 kN kN |
| Weight | 2.7 kg |
| Dimensions | 500 x 60 x 150 mm |
| Revolving/rotatable | approx. 350° rotating pressing jaw holder |
| *Klauke® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models. |
Ordering Information
DISPLAY STANDARD EQUIPMENT
| PART NO. | Description |
|---|---|
| TT32 | Fabric bag |
Ordering information
| PART NO. | Description |
|---|---|
| HPU32EX | HPU32EX Hydraulic manual pressing tool EX version |
| HPU32 | HPU32 Hydraulic manual pressing tool (Standard) |
Relation
| PART NO. | Description |
|---|---|
| HPU32EX | HPU32EX Hydraulic manual pressing tool EX version |
