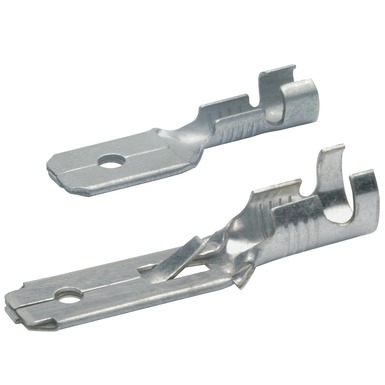

Non-insulated tabs

Non-insulated tabs

  • For fine and superfine stranded conductors, e.g. according to DIN EN 60228 Cl. 5 and 6
  • Verbesserte Kontakteigenschaften durch Rillenprägung
Show Less
Read More

Features

Material

  • Brass (CuZn)

Surface

  • Tin plated to protect against corrosion

Additional information

  • * = Maße im Steckbereich DIN 46244

Compatibility

Cable type
{{model}}
Cable type Description
Fine-strand conductor (Class 5 according to DIN EN 60228) made from bright finish or metal-encased annealed copper
Extra-fine-strand conductor (Class 6 according to DIN EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information
{{model}}
PART NO. Nominal cross-section mm² Nominal size according to DIN Tab Thickn. Tab Width Type Note Dimensions mm Weight/100 pcs. ~kg PU/pcs.
d2 l1 l2 a1 a2
2235 0,5-1  0,8  2,8  1,30  22,5  12,7  6,0  3,2  0,045  100
2220 0,5-1  46343 B6,3 - 1  0,8  6,3  1,65  28,0  16,0  8,2  4,0  0,085  100
1830 1,5-2,5  46248 A6,3 - 2,5  0,8  6,3  1,65  20,0  8,0  9,0  4,5  0,065  100
2230 1,5-2,5  46343 B6,3 - 2,5  0,8  6,3  1,65  28,0  16,0  8,2  4,0  0,090  100
2250 4-6  46343 B6,3 - 6  0,8  6,3  1,65  28,0  16,0  8,2  4,0  0,100  100
