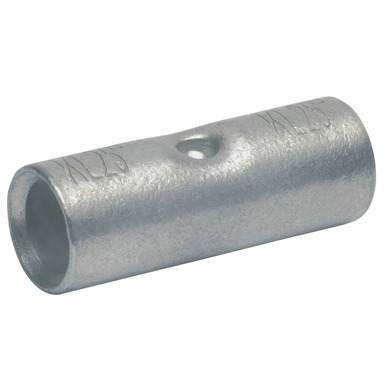

Solderless connectors according to DIN, Cu, long type

Solderless connectors according to DIN, Cu, long type

  • Für Rundleiter, z. B. nach DIN EN 60228 Kl. 2, 5 und 6
  • Nach DIN 46341 Teil 1, Form B
  • Einfache und sichere Verarbeitung durch Mitteneindruck
Show Less
Read More

Features

  • Einfache Kabeleinführung durch präzise Endenbearbeitung
  • Optimale Material- und Verpresseigenschaften durch geglühtes Material

Material

  • Kupfer (EN13600)

Surface

  • Tin plated to protect against corrosion

Compatibility

Cable type
{{model}}
Cable type Description
Multi-strand conductor (Class 2 according to DIN EN 60228) made from bright finish or metal-encased annealed copper.
Fine-strand conductor (Class 5 according to DIN EN 60228) made from bright finish or metal-encased annealed copper
Extra-fine-strand conductor (Class 6 according to DIN EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering information
{{model}}
PART NO. Nominal cross-section mm² Nominal size according to DIN Dimensions mm Weight/100 pcs. ~kg PU/pcs.
d1 d4 l
1620L > 0,5 - 1  1,8  3,3  15  0,08  100
1630L > 1,5 - 2,5  2,5  2,5  4,1  15  0,10  100
1650L > 4 - 6  3,8  5,8  15  0,19  100
1652L > 10  10  4,7  6,9  21  0,36  100
1653L > 16  16  5,8  8,4  26  0,62  100
1654L > 25  25  7,7  10,7  29  1,11  100
1655L > 35  35  9,2  12,4  32  1,50  100
1656L > 50  50  11,2  14,8  38  2,44  100
1657L > 70  70  13,2  17,2  42  3,54  50
1658L > 95  95  15,3  20,3  48  5,87  50
1659L > 120  120  16,8  22,8  52  8,46  50
1660L > 150  150  19,3  25,7  56  10,86  50
