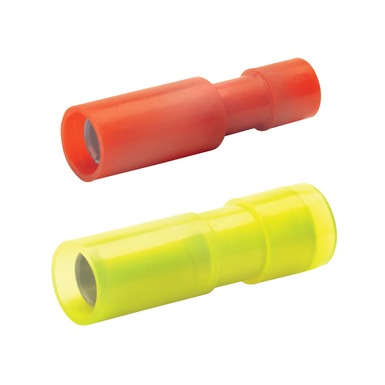

Insulated pin receptacles, fully insulated

Insulated pin receptacles, fully insulated

  • For fine and superfine stranded conductors, e.g. according to DIN EN 60228 Cl. 5 and 6
  • Optimale Federeigenschaft und höhere Steckfestigkeit durch hochwertiges Bronzematerial
  • Schnelle Verarbeitung, da keine weitere Isolierung der verpressten Verbindung notwendig ist
  • Isolierhülse halogenfrei
Show Less
Read More

Features

  • Cross-section-dependent colour-coding
  • Temperaturbeständigkeit: bis 105 °C

Material:

  • Bronze (CuSnZn)
  • Isolierhülse: PA

Surface

  • Tin plated to protect against corrosion

Additional information

  • 4 - 6 mm² nicht CSA geprüft

Compatibility

Cable type
{{model}}
Cable type Description
Fine-strand conductor (Class 5 according to DIN EN 60228) made from bright finish or metal-encased annealed copper
Extra-fine-strand conductor (Class 6 according to DIN EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering Information
{{model}}
PART NO. Nominal cross-section mm² Colour Dimensions mm Weight/100 pcs. ~kg PU/pcs.
l1 s Connector dia.
920V 0,5-1
24  0,38  0,065  100
950V 4-6
27  0,40  0,150  100
