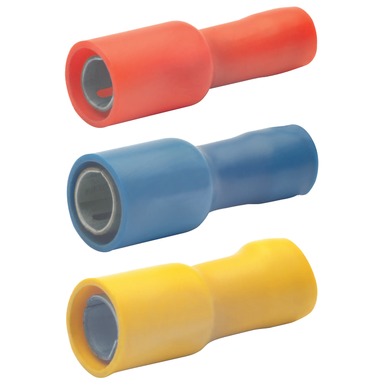

Insulated pin receptacles

Insulated pin receptacles

  • For fine and superfine stranded conductors, e.g. according to DIN EN 60228 Cl. 5 and 6
  • Optimale Federeigenschaft und höhere Steckfestigkeit durch hochwertiges Bronzematerial
Show Less
Read More

Features

  • Cross-section-dependent colour-coding
  • Temperature resistance: to 70 °C

Material

  • Bronze (CuSnZn)
  • Insulation sleeve: PVC

Surface

  • Tin plated to protect against corrosion

Additional information

  • 1,5 - 2,5 mm² und 4 - 6 mm² nicht CSA geprüft

Compatibility

Cable type
{{model}}
Cable type Description
Fine-strand conductor (Class 5 according to DIN EN 60228) made from bright finish or metal-encased annealed copper
Extra-fine-strand conductor (Class 6 according to DIN EN 60228) made from bright finish or metal-encased annealed copper

Ordering Information

Ordering Information
{{model}}
PART NO. Nominal cross-section mm² Colour Dimensions mm Weight/100 pcs. ~kg PU/pcs.
l1 Connector dia.
920 0,5-1
22  0,060  100
930 1,5-2,5
22  0,120  100
950 4-6
22  0,125  100
