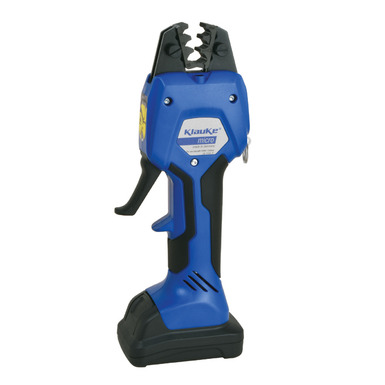

EK WF 50 ML Electromechanical crimping tool 0.5 - 50 mm² for cable end-sleeves and twin cable end-sleeves

EK WF 50 ML Electromechanical crimping tool 0.5 - 50 mm² for cable end-sleeves and twin cable end-sleeves

  • The Klauke micro with intuitive PowerSense function combines the benefits of manual crimping pliers K 507 WF with the convenience of battery powered hydraulic crimping tools
  • One crimping profile to suit all common conductors
  • Fast, easy replacement of crimping dies
  • Fewer crimpings thanks to optimal application width
  • Excellent crimps with minimum effort
Show Less
Read More

Features

  • One-button operating concept for controlling all tool functions
  • PowerSense function: Manual pre-clamping by hand, motorised crimping
  • Electronic control with locking function monitors full closing of the interchangeable dies
  • Ergonomic 2C housing in the Klauke "In-line Design"
  • Tool fixing point for use with balancer aid or lanyard
  • Very low weight and high speed for maximum efficiency
  • Powerful drive technology for effortless operations
  • Powerful 10.8V Li-Ion battery with charge status display
  • LED for work area illumination
  • Maintenance display via LED

suitable for

  • Cable end-sleeves and twin cable end-sleeves

Specifications

Crimping range 0,5 - 50 mm²
Number of crimps 400 at 10 mm²
Battery voltage 10.8 V
Battery capacity 2.5 Ah, Li-Ion
Battery charging time approx. 45 min.
Weight including battery 0.96 kg
Ambient temperature -10 °C to +40 °C
*Klauke® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.

Ordering Information

{{model}}
PART NO. Description
EKWF50ML Electromechanical crimping tool 0.5 - 50 mm² for cable end-sleeves and twin cable end-sleeves
Scope of delivery
{{model}}
PART NO. Description
AE5071 Crimping dies for cable end-sleeves, 0.5 - 6 mm²
AE5072 Crimping dies for cable end-sleeves, 10 - 25 mm²
AE5073 Crimping dies for cable end-sleeves, 35 - 50 mm²
ZAE5072 Crimping dies for twin cable end-sleeves 2 x 6 - 2 x 16 mm²
RAML1225 Akku 10,8 V / 2,5 Ah, Li-Ion (27 Wh)
LGML1 Charger for 10.8 V Li-Ion batteries, 230V
KKEK50ML Hard plastic carrying case
